SBR...UU

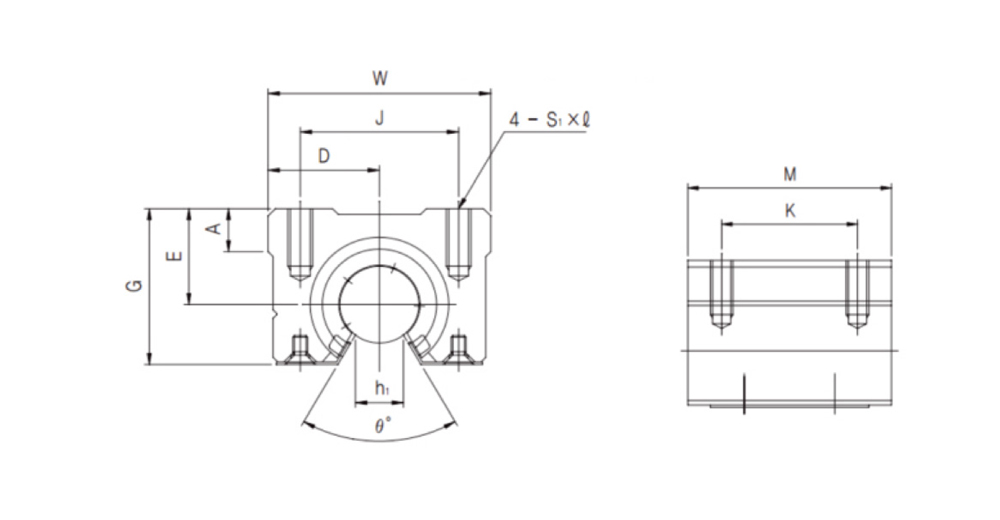

| ÜRÜN ADI | dr | D | W | G | A | M | S1XQ | h1 | E | J | K | BASIC LOAD RATİN DYNAMIC |
| SBR 12 UU | 12 | 20 | 40 | 27.5 | 9 | 39 | M5x10 | 10 | 15 | 28 | 26 | 500 |
| SBR 16 UU | 16 | 22.5 | 45 | 33 | 9 | 45 | M5x12 | 11 | 20 | 32 | 30 | 770 |
| SBR 20 UU | 20 | 24 | 48 | 39 | 11 | 50 | M6x12 | 11 | 23 | 35 | 35 | 860 |
| SBR 25 UU | 25 | 30 | 60 | 47 | 14 | 65 | M6x12 | 12 | 27 | 40 | 40 | 980 |
| SBR 30 UU | 30 | 35 | 70 | 56 | 15 | 70 | M8x18 | 15 | 33 | 50 | 50 | 1560 |
| SBR 40 UU | 40 | 45 | 90 | 72 | 20 | 90 | M10x20 | 20 | 42 | 65 | 65 | 2150 |
SBR12UU,SBR16UU,SBR20UU,SBR25UU,SBR30UU,SBR40UU,
